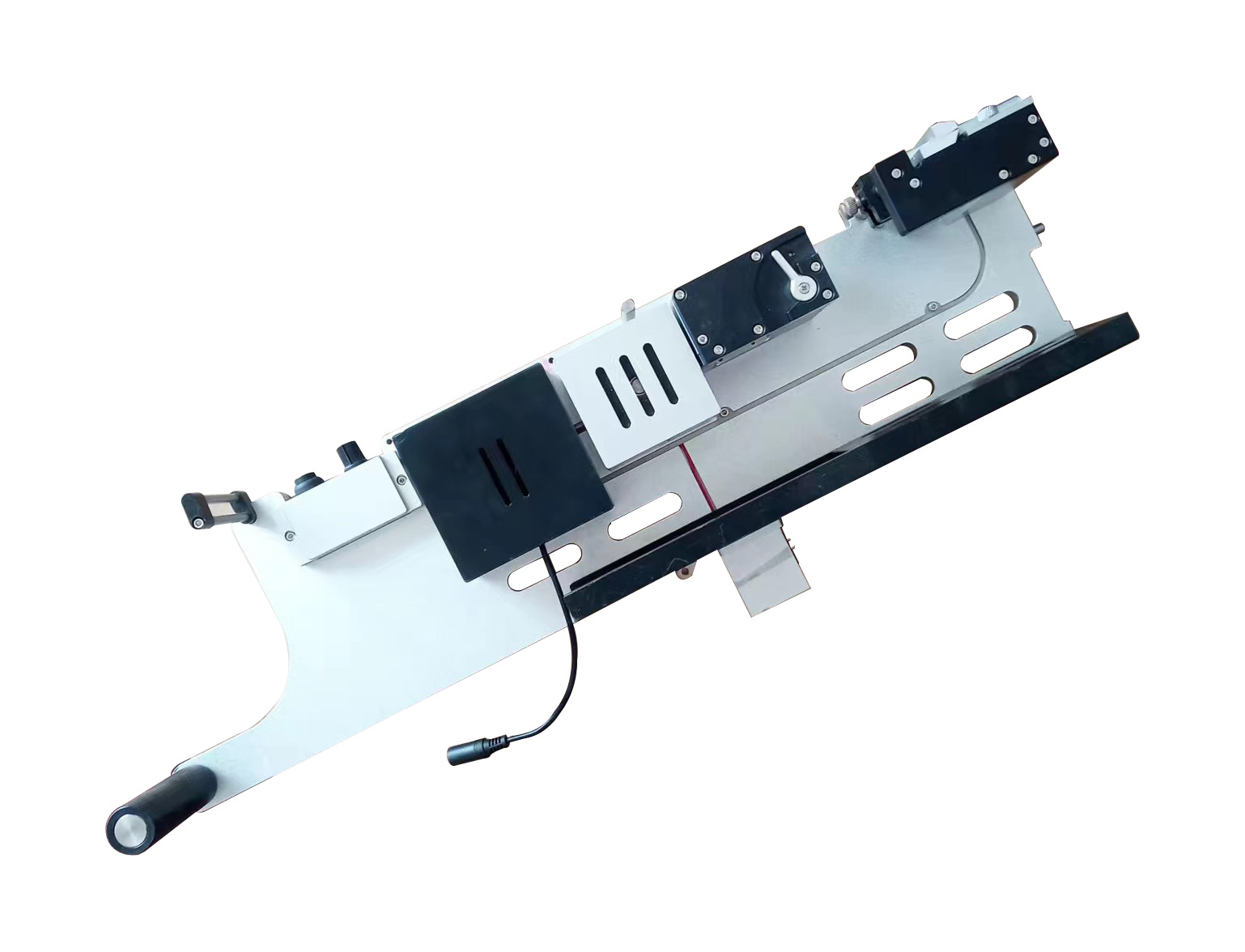

Samsung Label Feeder

Applied to : CP60, CP50, CP45,CP40,SM451, SM421, SM411, SM320, CP45Neo and so on.

Samsung Label Feeder
Samsung Label Feeder
Samsung Label Feeder

Samsung label feeder into Samsung SMT machine:

Samsung Label Feeder into SM machine
Samsung Label Feeder into SM machine
Samsung Label Feeder into machine

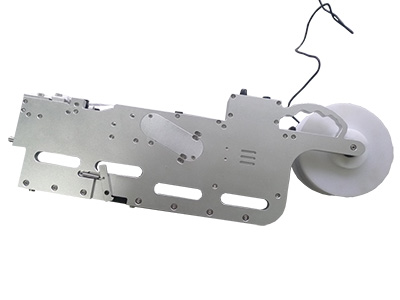

Applied to : CP45,CP40,CP20 and so on.

Samsung Label Feeder
Samsung Label Feeder
Samsung Label Feeder

Samsung label feeder into Samsung SMT CP45,CP40,CP20 machine:

Samsung Label Feeder
Samsung Label Feeder
Samsung Label Feeder

We have three Liner(web) width for Samsung label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you Cutomized nozzle for Samsung label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :

Samsung nozzle for label feeder
