Yamaha Label Feeder

Applied to : those Yamaha SMT machines using CL, FV feeders such as YVL88 II, YV88X, YV88XG, YV112,YV100X, YV100II,YV100A,YV100XE,YV100XG,YG100,YG200 and so on.

Yamaha Label Feeder

Yamaha Label Feeder : liner width 85mm

Yamaha Label Feeder 85mm

Yamaha label feeder into Yamaha SMT machine:

Yamaha Label Feeder into YV100 machines
Yamaha Label Feeder into YV100 machines
Yamaha Label Feeder into YV100 machines

==============================================================================================================================

Applied to : those Yamaha SMT machines using motorized feeders such asYS12,YS24,YS24X,YS88,YS100 and so on.

Yamaha Label Feeder

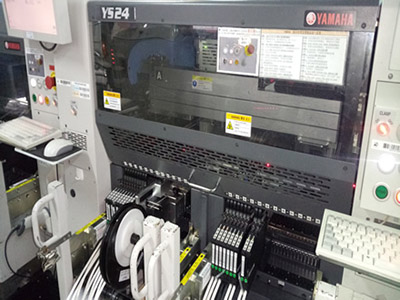

Yamaha label feeder into Yamaha SMT machine:

Yamaha Label Feeder into machines
Yamaha Label Feeder into YV100 machines
Yamaha Label Feeder into YV100 machines
Yamaha Label Feeder into YV100 machines
Yamaha Label Feeder into YV100 machines

We have three Liner(web) width for Yamaha label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you Cutomized nozzle for Yamaha label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :

Yamaha nozzle for label feeder
Yamaha nozzle for label feeder
