Fuji Label Feeder

Applied to : those Fuji SMT machines such as XP141,XP142, XP143, CP8,IP, IP2,IP3,QP132, QP242,QP341 and so on.

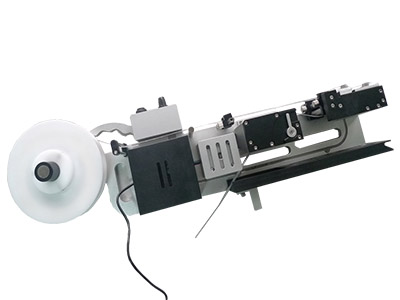

Fuji Label Feeder

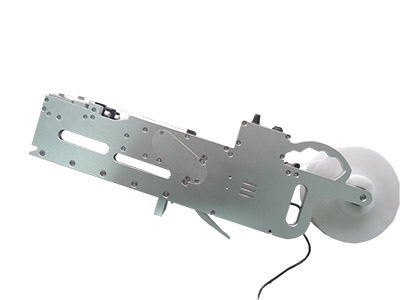

Fuji Label Feeder
Fuji Label Feeder

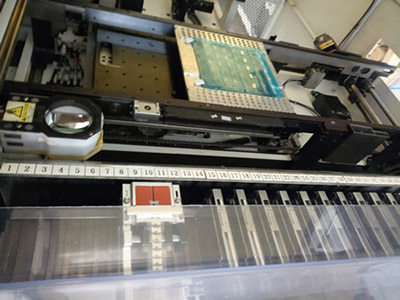

Fuji label feeder into Fuji SMT machine:

Fuji Label Feeder into machine
Fuji Label Feeder into machine

We have three Liner(web) width for Fuji label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you Cutomized nozzle for Fuji label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :
