Panasonic Label Feeder

Applied to : those Panasonic SMT machines such as CM402,CM602,NPM and so on.

Panasonic Label Feeder

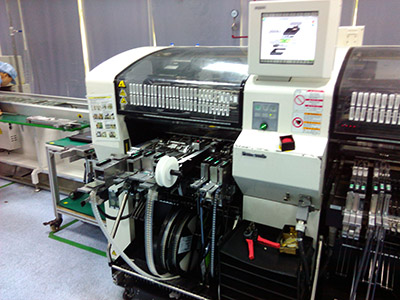

Panasonic label feeder into Panasonic SMT machine:

Panasonic Label Feeder into machine

Applied to : those Panasonic SMT machines such as CM202,CM301 and so on.

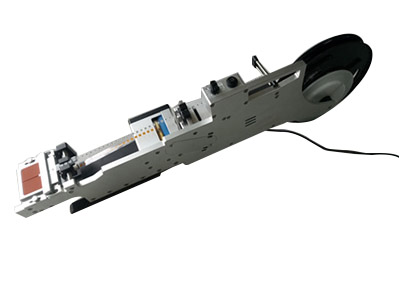

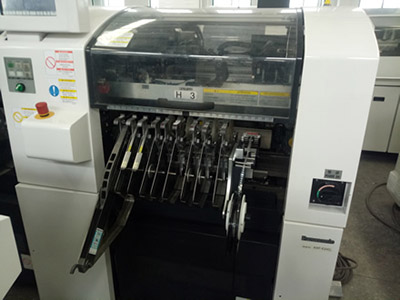

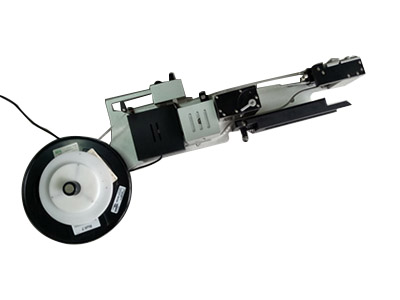

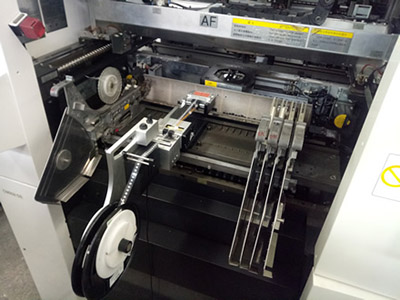

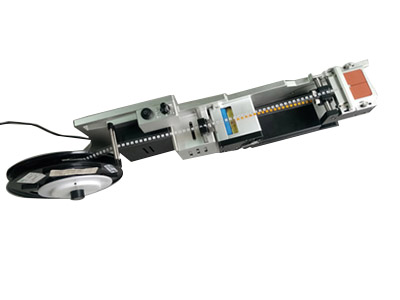

panasonic cm301 cm202 label feeder
panasonic cm301 cm202 label feeder
panasonic cm301 cm202 label feeder
panasonic cm301 cm202 label feeder
panasonic cm301 cm202 label feeder

We have three Liner(web) width for Panasonic label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you Cutomized nozzle for Panasonic label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :
