For product identification, traceability and process flow control, people will mark PCB boards with a barcode label,usually this is done by hand, so the labor costs is very high, also placement accuracy can be questionable. Or you can buy a machine to pick and place these labels automatically, but the cost is very high and it occupy an additional factory floor space.



Now we have deleoped a automatic barcode label feeder, it can solve all these problems. It is just the same as a feeder for your existing placement machines,it can peel and present the barcode label stock, your placement machines can pick and place these barcode labels from this barcode label feeder, this approach is more productive and faster than hand placement. It is no longer necessary to hand place labels or other adhesive backed media. Automate your process while improving placement accuracy, speed and quality.



We have three Liner(web) width for this barcode label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Label Feeder

See video--How our label feeder works with the SMT pick and place machine ?

See video--How to use our label feeder ?



label feeder



Label Feeder



Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec





We also supply customized nozzles used to pick and place the labels for ASSEMBLEON , YAMAHA , JUKI , SAMSUNG , PANASONIC , FUJI , PHILIPS , UNIVERSAL , SANYO , I-PULSE ,  HITACHI NOZLES, MIRAE , MYDATA and so on.

Assembleon nozzle for label feeder
Panasonic nozzle for label feeder
Samsung nozzle for label feeder
Cutomized nozzle for juki label feeder

JUKI Label Feeders

For JUKI SMT machines such as KE710, KE720, KE730, KE750, KE760, KE2000 /2010 /2020 /2030 /2040 /2050 /2060 /2070 /2080 /3010 /3020 /1070 /1080 FX-1 / FX-2 /FX-3

Juki Label Feeder
juki Label Feeder into machine into machine

Yamaha Label Feeders

For Yamaha SMT pick and palce machines suc as YVL88 II, YV88X, YV88XG, YV112, YV100X, YV100II, YV100A, YV100XE, YV100XG, YG100, YG200, YS12, YS24, YS24X, YS88, YS100 and so on

Applied to : those Yamaha SMT machines using CL, FV feeders such as YVL88 II, YV88X, YV88XG, YV112,YV100X, YV100II,YV100A,YV100XE,YV100XG,YG100,YG200 and so on.

Yamaha Label Feeder
Yamaha Label Feeder into YV100 machines

Applied to : those Yamaha SMT machines using motorized feeders such as ,YS12,YS24,YS24X,YS88,YS100 and so on.

Yamaha Label Feeder
Yamaha Label Feeder into YS machines

Samsung Label Feeders

For Samsung SMT pick and place machines such as CP60, CP50, CP45,CP40,SM451, SM421, SM411, SM320, CP45Neo,CP40,CP20

Applied to : those Samsung SMT machines such as CP60, CP50, CP45,CP40 and so on.

Samsung Label Feeder
Samsung Label Feeder

Applied to : those Samsung SMT machines such as SM451, SM421, SM411, SM320 and so on.

Samsung Label Feeders for SM machines
Samsung Label Feeder

ASM Siplace Label Feeders

For D1,D2,D3,D4,D4i, HF,HS60,HF3 D series and H series

ASM Siplace Label Feeder
Siplace Label Feeder

Applied to : those Samsung SMT machines such as SM451, SM421, SM411, SM320 and so on.

Samsung Label Feeders for SM machines
Samsung Label Feeder

FUJI AIMEX Label FEEDER FUJI NXT Label FEEDER

those Fuji AIMEX SMT machines such as M3,M3S,M3 II,M3IIC,M3 III,M3 IIIC,M6,M6 II,M6 IIC,M6 III,M6 IIIC XPF-L,XPF-W, XPF-S and so on, and so on.

FUJI AIMEX Label FEEDER
FUJI AIMEX Label FEEDER 85mm

i-Pulse Label Feeder

For i-Pulse SMT pick and palce machines such as M10,M20 and so on .Applied to : those i-Pulse SMT machines M10 so on.

i-Pulse Label Feeder
i-Pulse Label Feeder

Applied to : those i-Pulse SMT machines M1 & M4 M6ex, M7, M8 so on.

i-Pulse Label Feeder
i-Pulse Label Feeder

Fuji Label Feeders

For Fuji SMT pick and place machines such as NXT, CP,XP,QP,IP,CP6, CP643,CP643ME3,CP65, CP7,XP141,XP142, XP143, CP8,IP, IP2,IP3,QP132, QP242,QP341.Applied to : those Fuji SMT machines such as XP,QP, IP series and so on.

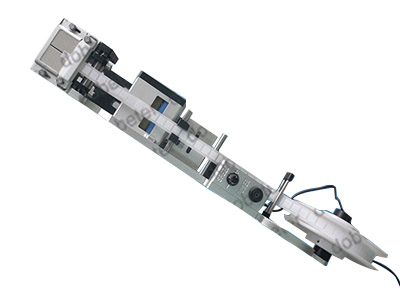

fuji label feeder
fuji label feeder for XP141,XP142, XP143, CP8,IP, IP2,IP3,QP132, QP242,QP341

Assembleon Label Feeders

For Assembleon SMT pick and place machines such as Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, MC-12, EMERALD,EMERALD X, EMERALD X II,SAPPHIRE , COMET, Opal

Applied to : those Assembleon SMT machines using CL, FV feeders such asTopaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, EMERALD,EMERALD X, EMERALD X II,SAPPHIRE , COMET, Opal and so on.

Yamaha Label Feeder

Applied to : those Assembleon SMT machines using motorized feeders such as MC-1,MC-5,MC-8,MC-12 MC-Series and so on.

Panasonic Label Feeders

For KME, CM202, CM402, CM602, NPM, BM123, BM221, NPM, MPA, MPAV, MPAG3, MPAV2B

Applied to : those Panasonic SMT machines such as KME, CM202,CM402,CM602,NPM,and so on.

Panasonic Label Feeders
Panasonic Label Feeders into machine

Universal Label Feeders

For those Universal SMT machines such as GSM2,GSM1,GI14D,Genesis GI-14D GI14 ,GX11D,Genesis GX-11D GX11D ,GX11S,Genesis GX-11S GX11S GX37D,Genesis GX-37Dgx37d ,GC30S,Genesis GC-30S,gc30s ,GC60D,Genesis gc-60d GC60 4991D/GC120Q 4991D ,GSM1 ,4796 ,4797 and so on.

universal Label Feeder
universal Label Feeder

Topaz Label Feeders

For Topaz, Topaz X, Topaz XII.Applied to : those Yamaha SMT machines using CL, FV feeders such as Topaz, Topaz X, Topaz XII and so on.

Yamaha Label Feeder

smt label feeder

automatic label feeder

barcode label feeder

precision label feeder

Roll Label Feeders
