Juki Label Feeder

Applied to : those Juki SMT machines KE710, KE720, KE730, KE750,KE760,KE2000/ 2010/ 2020/ 2030/ 2040/ 2050/ 2060/ 2070/ 2080/ 3010/ 3020/ 1070/ 1080 FX-1/ FX-2/ FX-3 such as Juki, Juki X, Juki XII and so on.

These machines are using this kind of pneumatic series feeder :

juki cf feeder
juki Label Feeder
juki Label Feeder Face

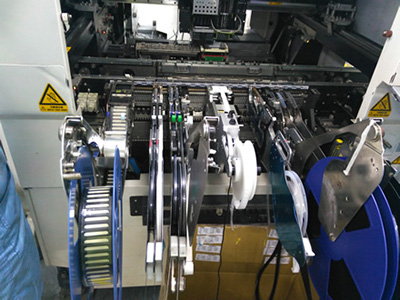

Juki label feeder into Juki SMT machine:

juki Label Feeder into machine into machine
juki Label Feeder into machine into machine

Applied to : those Juki SMT machines RX-6 , RX-7, FX-3RA, KE-3010A, KE-3020VA / KE-3020VRA and so on.

These machines are using this kind of EFseries feeder :

juki electric tape feeder
Juki Label Feeder
Juki Label Feeder
Juki Label Feeder RX-6 , RX-7, FX-3RA,KE-3010A, KE-3020VA / KE-3020VRA
Juki Label Feeder RX-6 , RX-7, FX-3RA,KE-3010A, KE-3020VA / KE-3020VRA

Applied to : those Juki SMT machines RS-1R, RX-6, RX-7, FX-3RA, KE-3010A, KE-3020VA/KE-3020VRA and so on.

These machines are using this kind of RFseries feeder :

juki electric tape feeder
Juki Label Feeder
Juki Label Feeder
Juki Label Feeder RS-1R,  RX-6, RX-7, FX-3RA, KE-3010A, KE-3020VA/KE-3020VRA
Juki Label Feeder RS-1R,  RX-6, RX-7, FX-3RA, KE-3010A, KE-3020VA/KE-3020VRA

We have three kinds of Liner(web) width for Juki label feeder : 50mm, 85mm and 100mm, also we can make customized liner width as your request, our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you cutomized nozzles for Juki label feeder , send us your datasheet of labels or samples we can design and manufacture the special nozzles for you :

Cutomized nozzle for juki label feeder
