Universal Label Feeder

-We offer you various kinds of universal label feeder for those Universal SMT machines such as GSM2,GSM1,GI14D,Genesis GI-14D GI14 ,GX11D,Genesis GX-11D GX11D ,GX11S,Genesis GX-11S GX11S GX37D,Genesis GX-37Dgx37d ,GC30S,Genesis GC-30S,gc30s ,GC60D,Genesis gc-60d GC60 4991D/GC120Q 4991D ,GSM1 ,4796 ,4797 and so on.

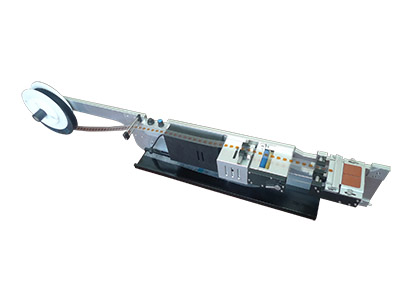

Universal Label Feeder
Universal Label Feeder

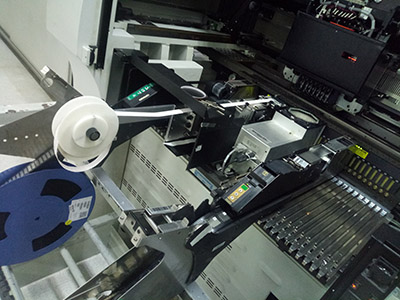

Universal label feeder into Universal SMT machine:

Universal Label Feeder
Universal Label Feeder

We have three Liner(web) width for Universal label feeder, 50mm, 85mm and 100mm, also we can make customized Liner Width as your request, so our label feeder can peel and present more than 2 lables at one time, so it is more efficient and productive.

Specs :

Specification Minimum  Maximum
Media Size 2 mm x 2 mm

31 mm to customized one * 50 mm,

31 mm to customized one * 85mm ,

31 mm to customized one * 100mm

Media Thickness 0.05 1
Liner Width  1

50mm

85mm

100mm

customized one

Liner Thickness  0.05 1
Feed Rate  0 mm / sec  95 mm / sec



We also supply you Cutomized nozzle for Universal label feeder , send us your datasheet for labels or samples we can design and manufacture the special nozzles for you :
